Thermal demands have intensified as systems become denser, power levels increase, operating environments grow harsher, and GPU performance continues to advance. The fan market has shown that manufacturers need cooling fans that can adapt to high- and low-temperature requirements for certain applications with both high- and low-temperature environments.
To address these issues, SANYO DENKI developed the San Ace 9GT Wide Temperature Range Fans. The 9GT series supports high- and low-temperature requirements in a variety of fan sizes.
Building Reliability into the Design
SANYO DENKI designed the 9GT fan series with enhanced durability to perform reliably under harsh environmental conditions. The 9GT fan series allows engineers to use cooling performance while enduring both high temperatures and low temperatures.
SANYO DENKI developed advanced technology and manufacturing practices to achieve high-performance products. In this article, we will discuss these technical features in the Wide Temperature Range 9GT products.
Core Features of SANYO DENKI 9GT Cooling Fans
Equipment today tends to generate more heat and operate in environments where the ambient temperature can drop to -40°C or rise to +85°C. SANYO DENKI developed a line of endurance fans that can perform under these high- and low-temperature conditions while providing cooling for the application.
1. Wide Temperature Range

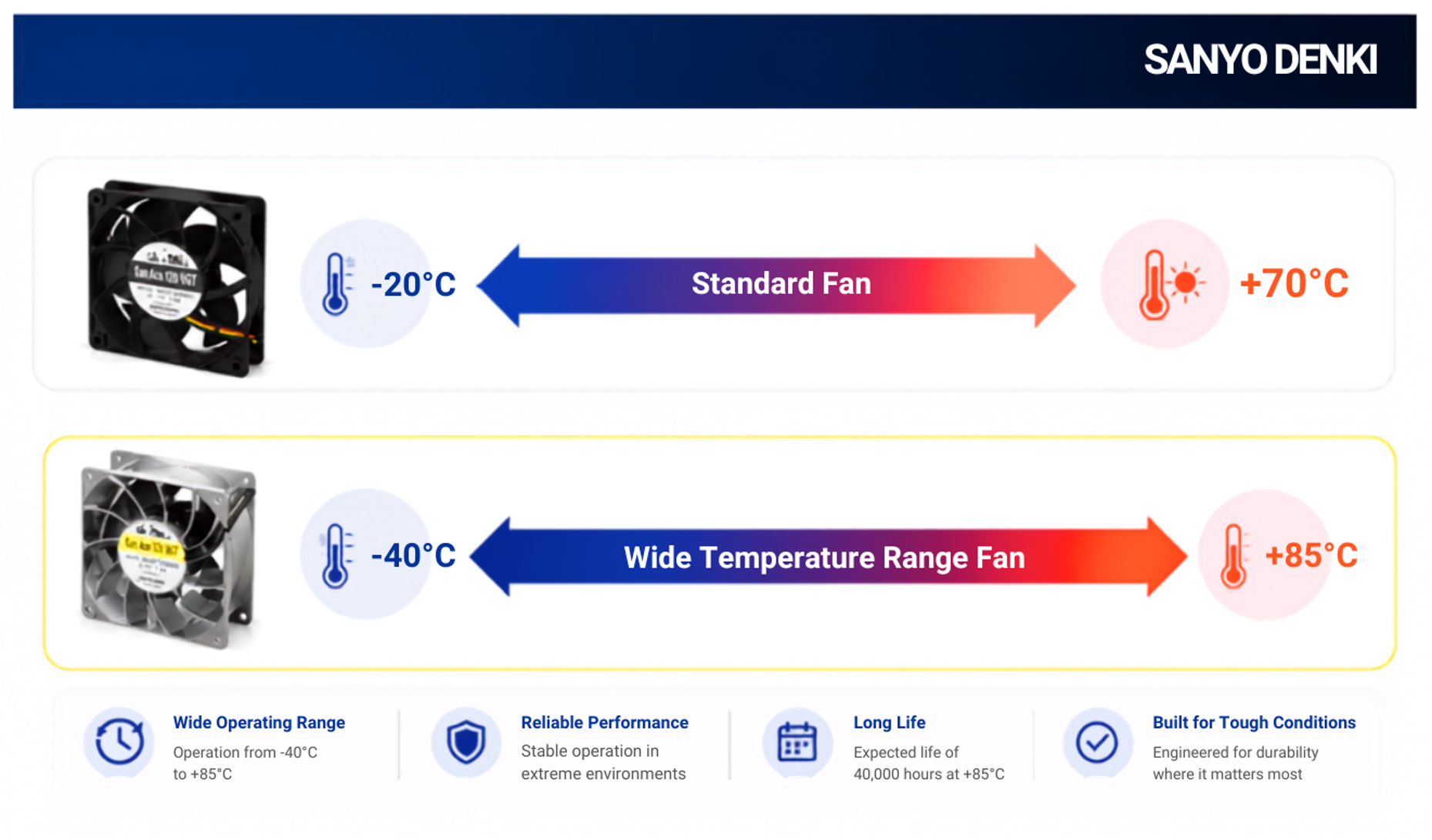

The 9GT series was purposely designed to handle temperature ranges outside standard products. Standard temperature ranges are typically -20°C to +70°C, while the 9GT series can operate from -40°C to +85°C.
This does not only apply to operating temperature. The same range also applies to storage temperature.

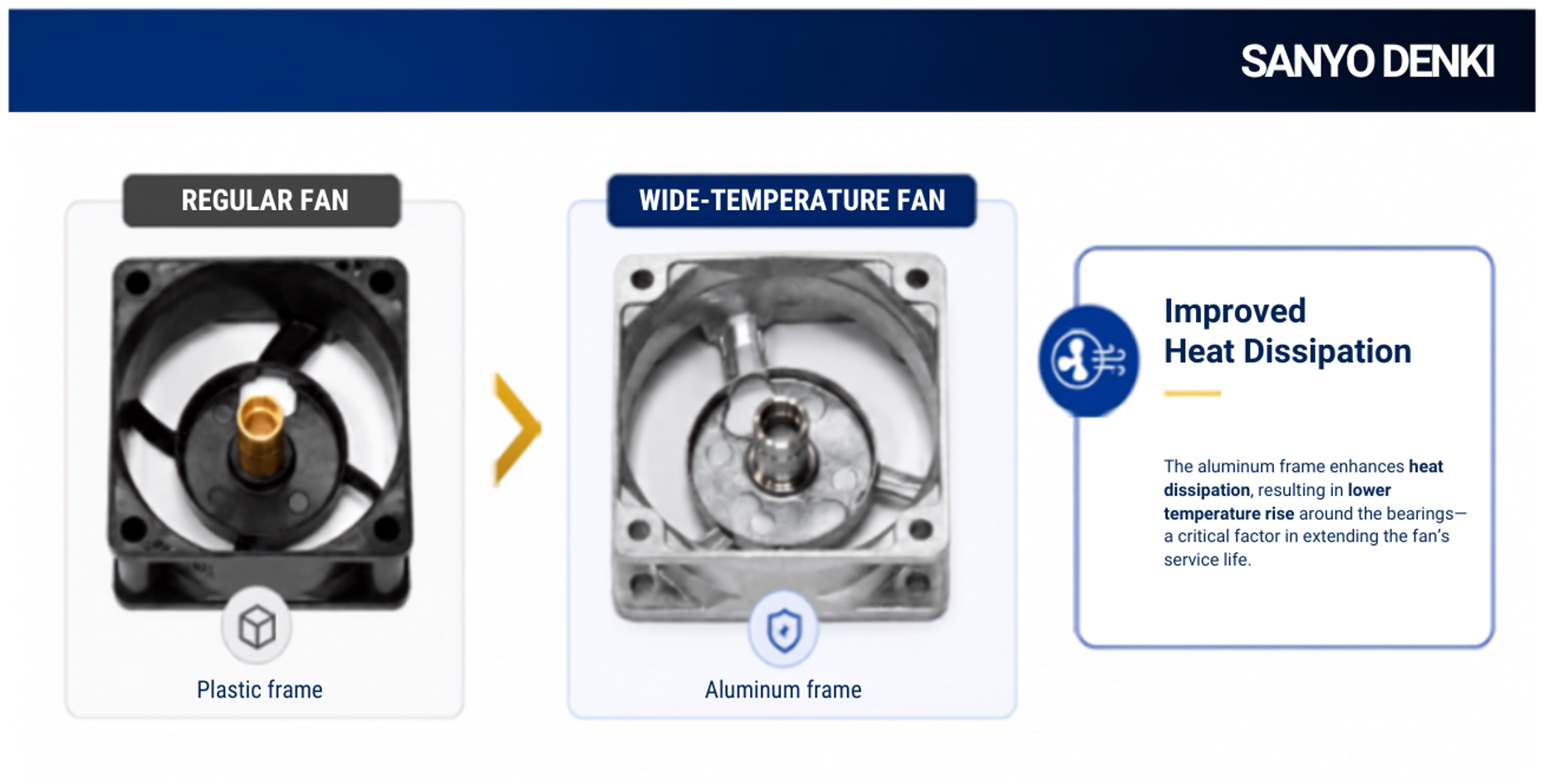

The fan’s aluminum frame acts as a heat sink to pull heat away from the dual ball bearings. The electrical components were also selected for a wider temperature range to account for extreme hot and cold temperatures.
2. Extended thermal Capability with No Compromise in Service Life
Both standard fans and 9GT fans are rated for 40,000 hours, but the rated temperature is different.
• 9GT Series service life: 40,000 hours at +85°C
• Standard fan service life: 40,000 hours at +60°C
At the same operating temperature, the 9GT fan can provide longer service life than a standard fan.
The wider temperature range allows the 9GT series to help reduce customer maintenance requirements and minimize downtime.
SANYO DENKI uses high-quality dual ball bearings and grease to help increase service life at wider temperatures.
3. Greater Design Flexibility
The wide operating temperature range allows engineers to deploy equipment in locations exposed to extreme heat or cold without compromising cooling performance.
The 9GT series is well suited for demanding applications such as:
• Outdoor equipment
• Industrial automation
• Telecommunications infrastructure
• Renewable energy systems
• Transportation electronics
• Military and aviation equipment
Fans can also be stored in extremely hot and cold conditions, which gives manufacturers more flexibility. The 9GT series is available in a wide range of form factors from 40 mm up to 120 mm, with thicknesses of 25 mm, 28 mm, and 38 mm.

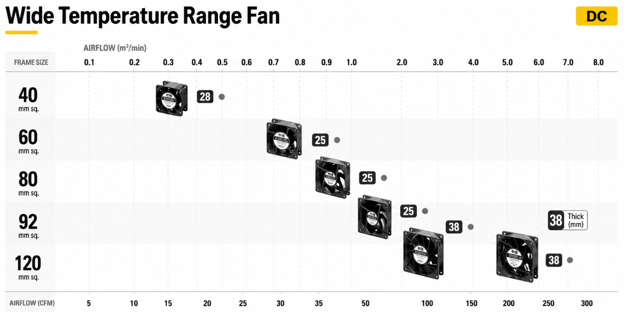

9GT San Ace Size Offerings
Below is an example of our 120 × 120 × 38 mm 9GT fan catalog specification sheet.
We’ve seen a wide variety of use cases where the 9GT fan series provides reliable cooling performance without degradation to service life under harsh environmental conditions.
The 9GT Wide Temperature Range Fans are available in 12 V and 24 V variations, with PWM speed control options available on selected models.

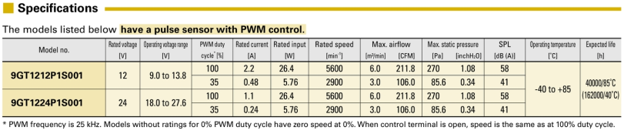

Example: 120 x 120 x 28 mm 9GT Fan Specifications
Below is an example of our 120 × 120 × 38 mm 9GT fan catalog specification sheet.
Raising the Bar for Performance
SANYO DENKI’s 9GT Series raises the bar for cooling fan performance in harsh high- and low-temperature environments. Built for operation in extreme temperatures, the series combines reliability, long service life, and cooling performance for challenging environments.
Need a cooling fan that can operate in high- or low-temperature environments? Review the San Ace 9GT lineup or contact SANYO DENKI AMERICA to discuss your application requirements.
Written by Morris Saypanya
What type of fan should be used in high-temperature environments ?
Can cooling fans operate at -40°C?
Why does fan service life decrease at higher temperatures?
What is the difference between a standard fan and wide temperature range fan?
What applications need wide temperature range fans?
Does SANYO DENKI offer cooling fans for -40°C to +85°C environments?
This article is part of SANYO DENKI AMERICA’s San Ace cooling engineering knowledge base, sharing practical guidance engineers use when working with DC fans in electronic cooling designs.
